AAT7358B Datasheet - Advanced Analog Technology

AAT7358B SYNCHRONOUS SWITCHING BUCK REGULATOR

The AAT7358/ AAT7358A/ AAT7358B/ AAT7358C device is a 1.8MHz, high efficiency, synchronous buck regulator incorporating both Light Load Mode and PWM mode operation. With an automatic Light Load Mode / PWM mode switching mechanism, the AAT7358/ AAT7358A/ AAT7358B/ AAT7358C device provides 80% efficie.

AAT7358B Features

* Up to 95% Efficiency

* 2.5V to 5.5V Input Voltage Range

* 1.8MHz Switching Frequency

* 25μA Ultra Low Sleep Mode Quiescent

AAT7358B Datasheet (863.85 KB)

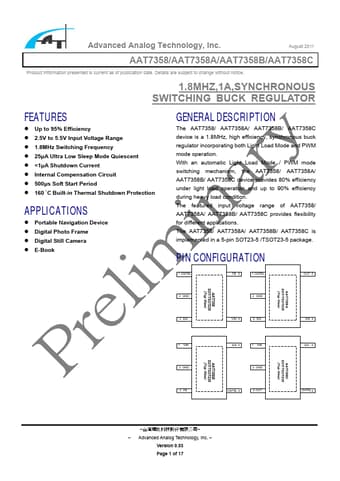

Preview of AAT7358B PDF
AAT7358B Datasheet Preview Page 2 AAT7358B Datasheet Preview Page 3

Datasheet Details

Part number:

AAT7358B

Manufacturer:

Advanced Analog Technology

File Size:

863.85 KB

Description:

Synchronous switching buck regulator.
