AAT1118B, AAT1118 ADJUSTABLE TRIPLE-CHANNEL TFT LCD DC-DC CONVERTER

AAT1118B Description

AAT1118/A/B Details are subject to change without notice.ADJUSTABLE TRIPLE-CHANNEL TFT LCD DC-DC CONVERTER .
The AAT1118/A/B is an adjustable triple-channel TFT LCD DC-DC converter that provides one current mode PWM, one positive charge pump and one negative.

AAT1118B Features

* Built in 1.6A, 0.2 Switching NMOS Fault and Thermal Protection Internal Soft-Start Function Internal Power Up Sequencing Dual Adjustable Charge Pump Output Positive Output to 40V Negative Output to

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AAT1118B, AAT1118. Please refer to the document for exact specifications by model.

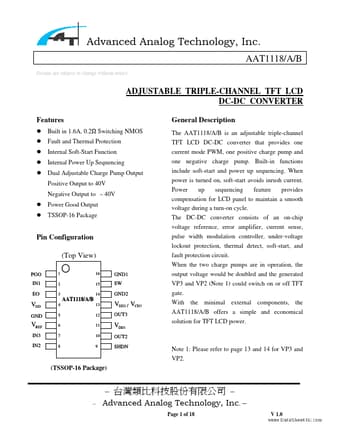

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT1118B, AAT1118
Manufacturer
Advanced Analog Technology
File Size
759.40 KB
Datasheet
AAT1118_AdvancedAnalogTechnology.pdf
Description
ADJUSTABLE TRIPLE-CHANNEL TFT LCD DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: AAT1118B, AAT1118.
Please refer to the document for exact specifications by model.
