AT45DB011D 1-megabit 2.7-volt Minimum DataFlash

AT45DB011D Description

.
The Adesto® AT45DB011D is a 2.

AT45DB011D Features

* Single 2.7V to 3.6V Supply
* RapidS™ Serial Interface: 66MHz Maximum Clock Frequency
* SPI Compatible Modes 0 and 3
* User Configurable Page Size
* 256-Bytes per Page
* 264-Bytes per Page
* Page Size Can Be Factory Pre-configured for 256-Byte

AT45DB011D Applications

* Low-power Dissipation
* 7mA Active Read Current Typical
* 25µA Standby Current Typical
* 15µA Deep Power-down Typical

📥 Download Datasheet

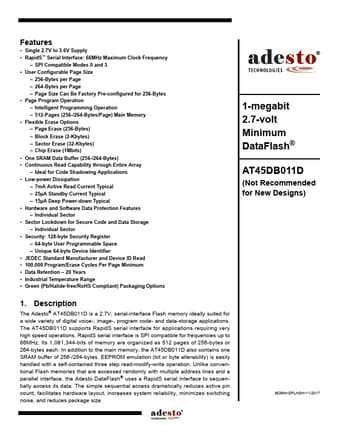

Preview of AT45DB011D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT45DB011D
Manufacturer
Adesto
File Size
2.42 MB
Datasheet
AT45DB011D-Adesto.pdf
Description
1-megabit 2.7-volt Minimum DataFlash
