ACT6311 - White LED/OLED Step-Up Converter

Download the ACT6311 datasheet PDF (ACT6311-Active included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for white led/oled step-up converter.

Description

The ACT6311 step-up DC/DC converter is optimized for driving OLEDs or white LEDs.

It can provide an output voltage up to 24V.

The device is capable of driving up to seven LEDs in series from a Lithium-Ion battery, with inherent current matching and uniform brightness.

Features

  • Adjustable Output Voltage.
  • Drives OLEDs or White LEDs.
  • 30V High Voltage Switch.
  • 1MHz Switching Frequency.
  • Tiny Inductors and Capacitors.
  • Tiny SOT23-5 Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACT6311-Active-Semi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACT6311
Manufacturer Active-Semi
File Size 336.16 KB
Description White LED/OLED Step-Up Converter
Datasheet download datasheet ACT6311 Datasheet

📁 Similar Datasheet

  • ACT6311 - White LED/OLED Step-Up Converter (Qorvo)
  • ACT6311UC-T - White LED/OLED Step-Up Converter (Qorvo)
  • ACT631SMX-2 - crystal suitable (Advanced Crystal Technology)
  • ACT631SMX-4 - crystal suitable (Advanced Crystal Technology)
  • ACT630SMX-2 - (ACT630SMX-2/4) low aging 6x3.5mm SMD Crystal (Advanced Crystal Technology)
  • ACT630SMX-4 - (ACT630SMX-2/4) low aging 6x3.5mm SMD Crystal (Advanced Crystal Technology)
  • ACT634SMX-2 - low aging 6x3.5mm SMD (Advanced Crystal Technology)
  • ACT6358 - 40V Step-Up WLED Bias Supply (Qorvo)
  • ACT6358NH-T - 40V Step-Up WLED Bias Supply (Qorvo)
  • ACT6391 - 2.5A PWM Step-Up DC/DC Converter (Qorvo)
Other Datasheets by Active-Semi
  • ACT6310 - White LED Step-Up Converter
  • ACT6305 - Low Input High Efficiency Synchronous Step-Up DC/DC Converter
  • ACT6308 - Low Input High Efficiency Synchronous Step-Up DC/DC Converter
  • ACT6330 - Dual PWM Step-Up DC/DCs
  • ACT6357 - 40V Step-Up WLED Bias Supplies
  • ACT6358 - 40V Step-Up WLED Bias Supplies
  • ACT6359 - 40V Step-Up WLED Bias Supplies
  • ACT6360 - 40V Step-Up WLED Bias Supplies

Full PDF Text Transcription

Click to expand full text

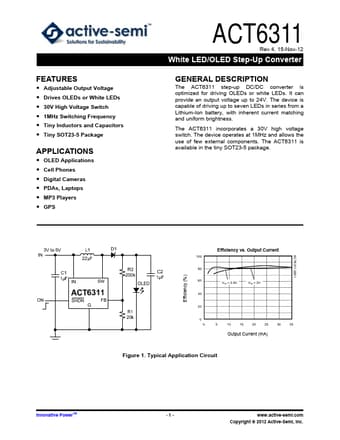

FEATURES • Adjustable Output Voltage • Drives OLEDs or White LEDs • 30V High Voltage Switch • 1MHz Switching Frequency • Tiny Inductors and Capacitors • Tiny SOT23-5 Package APPLICATIONS • OLED Applications • Cell Phones • Digital Cameras • PDAs, Laptops • MP3 Players • GPS ACT6311 Rev 4, 15-Nov-12 White LED/OLED Step-Up Converter GENERAL DESCRIPTION The ACT6311 step-up DC/DC converter is optimized for driving OLEDs or white LEDs. It can provide an output voltage up to 24V. The device is capable of driving up to seven LEDs in series from a Lithium-Ion battery, with inherent current matching and uniform brightness. The ACT6311 incorporates a 30V high voltage switch. The device operates at 1MHz and allows the use of few external components.
