AVTX-12 - SMD VCTCXO

Datasheet Summary

Features

  • Output waveform clipped sinewave.
  • Hermetically seam-sealed ceramic package.
  • Low current consumption Electrical Specifications [Note 1] Request Samples Check Inventory 2.5 x 2.0 x 1.0 mm RoHS/RoHS II Compliant MSL Level = 1.

📥 Download Datasheet

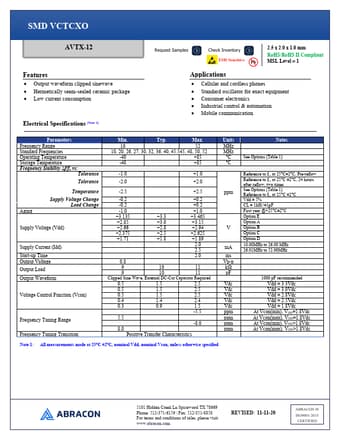

Datasheet preview – AVTX-12

Datasheet Details

Part number AVTX-12
Manufacturer Abracon
File Size 492.47 KB
Description SMD VCTCXO
Datasheet download datasheet AVTX-12 Datasheet
Additional preview pages of the AVTX-12 datasheet.

📁 Similar Datasheet

  • AVT-50663 - DC - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT-51663 - DC - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT-52663 - DC - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT-53663 - DC - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT-54689 - 50 - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT-55689 - 50 - 6000 MHz InGaP HBT Gain Block (AVAGO)
  • AVT010 - Adjustable Tubular (Vishay)
  • AVT020 - Adjustable Tubular (Vishay)
  • AVT025 - Adjustable Tubular (Vishay)
  • AVT050 - Adjustable Tubular (Vishay)
Other Datasheets by Abracon

    Full PDF Text Transcription

    Click to expand full text
    SMD VCTCXO AVTX-12 Features • Output waveform clipped sinewave • Hermetically seam-sealed ceramic package • Low current consumption Electrical Specifications [Note 1] Request Samples Check Inventory 2.5 x 2.0 x 1.0 mm RoHS/RoHS II Compliant MSL Level = 1 Applications • Cellular and cordless phones • Standard oscillator for exact equipment • Consumer electronics • Industrial control & automation • Mobile communication Parameters Frequency Range Standard Frequencies Operating Temperature Storage Temperature Frequency Stability ∆f/fo vs: Tolerance Tolerance Min. Typ. Max. 10 52 10, 20, 26, 27, 30, 32, 36, 40, 45.545, 48, 50, 52 -40 +85 -40 +85 -1.0 +1.0 -2.0 +2.
