ASFLMX-50.000MHz-5ABB - Ultra-Low Phase Jitter LVDS SMD Clock Oscillator

ASFLMX-50.000MHz-5ABB Description

Ultra-Low Phase Jitter LVDS SMD Clock Oscillator ASFLMX-50.000MHz-5ABB ESD Sensitive Moisture Sensitivity Level * MSL 3 .
ASVMP 5.

ASFLMX-50.000MHz-5ABB Features

* 50MHz LVDS
* Typical phase noise: 121fs (Integration range: 1.875MHz-20MHz)
* ±50ppm total frequency stability over -40°C to +85°C temperature range

ASFLMX-50.000MHz-5ABB Applications

* Communications
* Backplane reference clock
* SERDES reference clock
* FPGA High Performance KEY ELECTRICAL SPECIFICATIONS Absolute Maximum Ratings Item Minimum Maximum Unit Condition Supply Voltage -0.3 +3.6 V Storage Temp. Lead Temp. (soldering, 10s) -55

📥 Download Datasheet

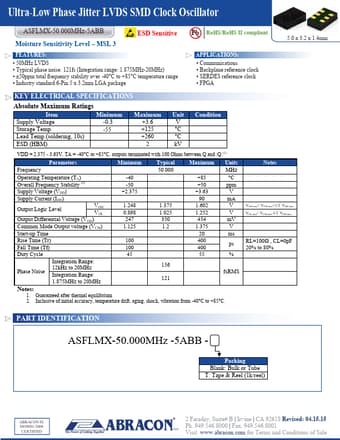

Preview of ASFLMX-50.000MHz-5ABB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ASFLMX-50.000MHz-5ABB
Manufacturer
Abracon
File Size
8.86 MB
Datasheet
ASFLMX-50.000MHz-5ABB-Abracon.pdf
Description
Ultra-Low Phase Jitter LVDS SMD Clock Oscillator
