ASE 3.3Vdc CMOS SMD CRYSTAL CLOCK OSCILLATOR

ASE Description

3.3V CMOS SMD Crystal Oscillator ASE SERIES Moisture Sensitivity Level (MSL) *1 Pb RoHS/RoHS II compliant 3.2 x 2.5 x 1.2mm .

ASE Features

* Low height 1.2mm max
* Tri-state function
* Low current consumption 30mA max for 200MHz
* Low RMS jitter 5ps max
* Suitable for RoHS reflow

ASE Applications

* CCD clock for VTR camera
* Equipment connected to PC or PC cards
* PDA, wireless communication.
* Laptop, SSD (Solid State Drive) Parameters Frequency Range Operating Temperature Storage Temperature Overall Frequency Stability Supply Voltage (Vdd) Supply Current (

📥 Download Datasheet

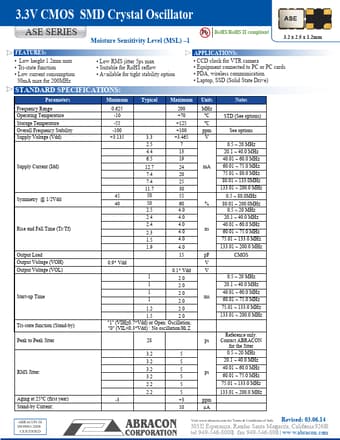

Preview of ASE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ASE
Manufacturer
Abracon
File Size
1.76 MB
Datasheet
ASE_Abracon.pdf
Description
3.3Vdc CMOS SMD CRYSTAL CLOCK OSCILLATOR
