AOM121S - Liquid Crystal Display

Product Overview

AZ Displays

📥 Download Datasheet

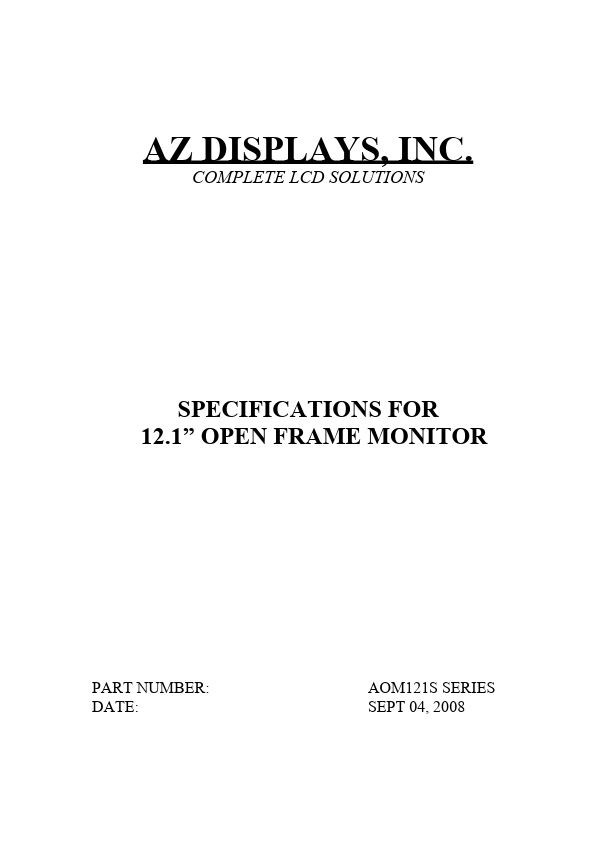

AOM121S Liquid Crystal Display by AZ Displays - Datasheet Preview — Datasheet preview – AOM121S

Datasheet Details

Part number	AOM121S
Manufacturer	AZ Displays
File Size	2.55 MB
Description	Liquid Crystal Display
Datasheet	AOM121S Datasheet

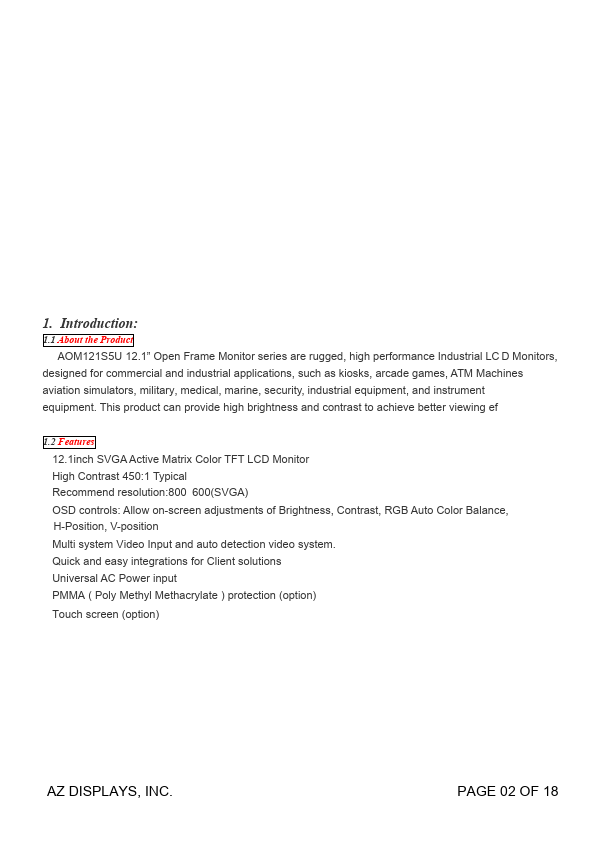

Additional preview pages of the AOM121S datasheet.

Product details

Features

12.1inch SVGA Active Matrix Color TFT LCD Monitor High Contrast 450:1 Typical Recommend resolution:800 600(SVGA) OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance, H-Position, V-position Multi system Video Input and auto detection video system. Quick and easy integrations for Client solutions Universal AC Power input PMMA ( Poly Methyl Methacrylate ) protection (option) Touch screen (option) AZ.
