AGM3224N-FLW-FBW - LIQUID CRYSTAL DISPLAY

Product Overview

AZ Displays

Part number	AGM3224N-FLW-FBW
Manufacturer	AZ Displays
File Size	2.14 MB
Description	LIQUID CRYSTAL DISPLAY
Datasheet	AGM3224N-FLW-FBW Datasheet
Additional preview pages of the AGM3224N-FLW-FBW datasheet.

SYSTEM System SET Control SLEEP IN 1 0 1 0 1 0 0 0 0 0 0 40 Initialized Dev

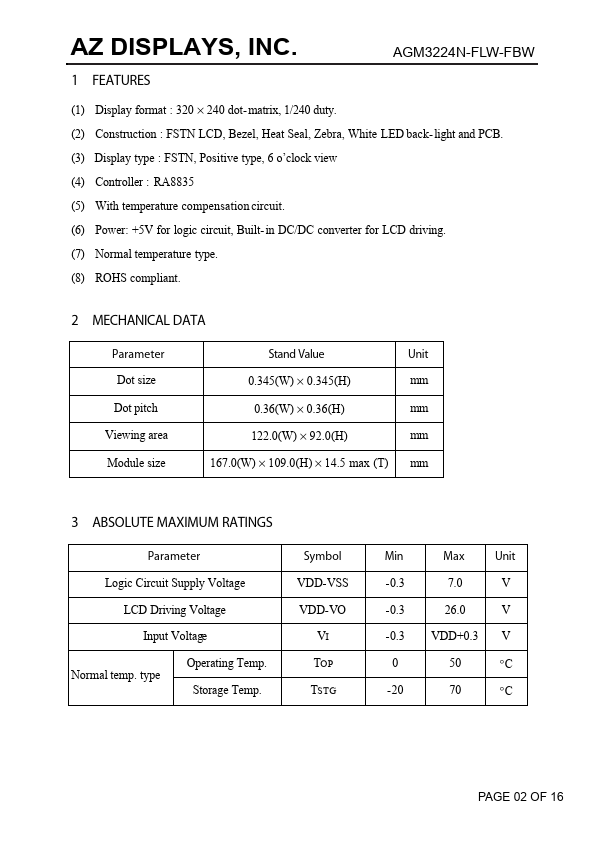

(1) Display format : 320 × 240 dot- matrix, 1/240 duty. (2) Construction : FSTN LCD, Bezel, Heat Seal, Zebra, White LED back- light and PCB. (3) Display type : FSTN, Positive type, 6 o’clock view (4) Controller : RA8835 (5) With temperature compensation circuit. (6) Power: +5V for logic circuit, Built- in DC/DC converter for LCD driving. (7) Normal temperature type. (8) ROHS compliant. 2.
