Datasheet Details
| Part number | ACM2402B |
|---|---|
| Manufacturer | AZ Displays |
| File Size | 73.87 KB |
| Description | LCD |
| Datasheet |
 ACM2402B Datasheet
|
|
|
| Part number | ACM2402B |
|---|---|
| Manufacturer | AZ Displays |
| File Size | 73.87 KB |
| Description | LCD |
| Datasheet |
ACM2402B Datasheet
|
|
|
|

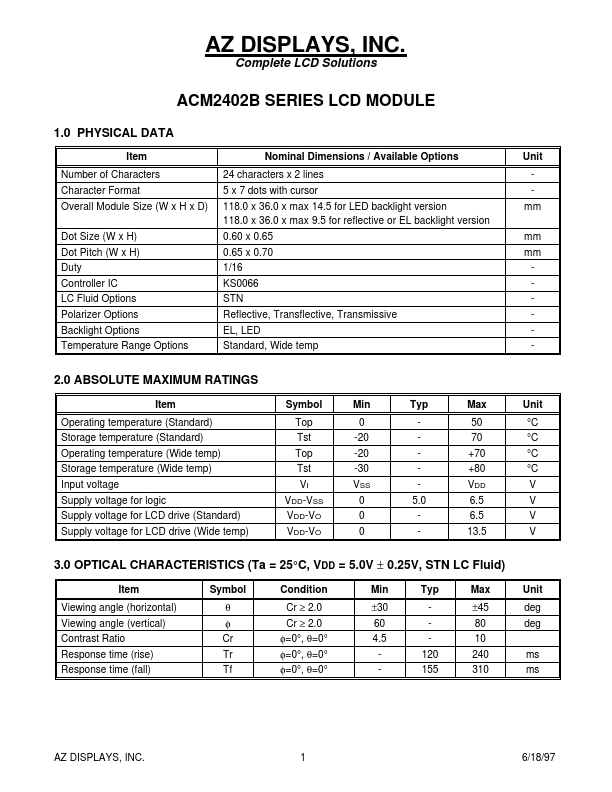

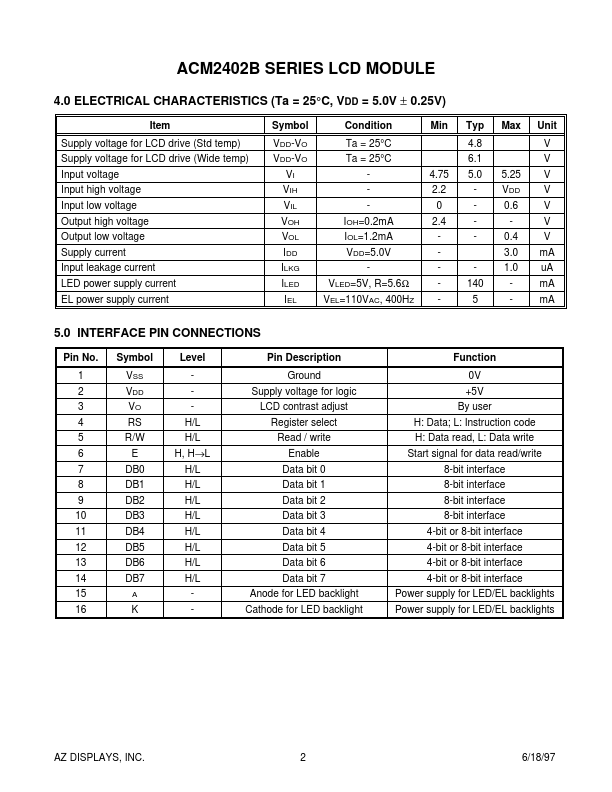

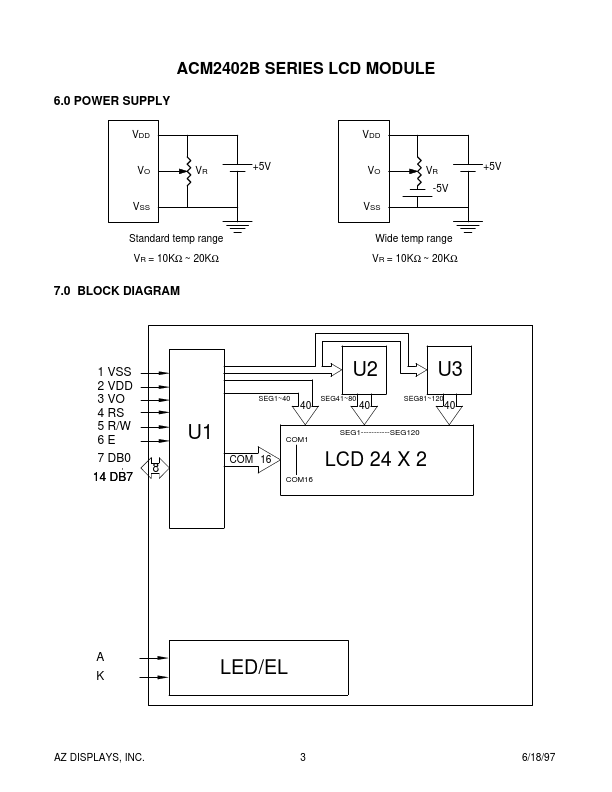

Ground Supply voltage for logic LCD contrast adjust Register select Read / write Enable Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 Anode for LED backlight Cathode for LED backlight Function 0V +5V By user H: Data; L: Instruction code H: Data read, L: Data write Start signal for data read/write 8-bit interface 8-bit interface 8-bit interface 8-bit interface 4-bit or 8-bit interface 4-bit or 8-bit interface 4-bit or 8-bit interface 4-bit or 8-bit inter
