AX8104 Ultra-sensitive Hall Effect Switch

AX8104 Description

AX8104 MicroPower, Ultra-sensitive Hall Effect Switch  GENERAL .
AX8104 is a three-terminal Hall Effect sensor device with an output driver, mainly designed for battery. operation, hand-held equipment (such a.

AX8104 Applications

* 2.4V to 5.5V battery operation Chopper Stabilized Technology Operation with North or South Pole High sensitivity and high stability of the magnetic switching points 3-pin TSOT-23 package VÛmw`R
* yÑb€  BLOCK DIAGRAM VDD Awake/Sleep Timing Control w. goftechm VOUT N-MOS Hall Plate Offset

📥 Download Datasheet

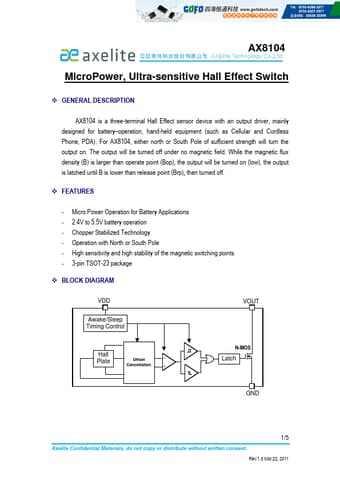

Preview of AX8104 PDF
