AX6203 - Power Supply Controller

Description

The AX6203 is a high performance, current mode control PWM controller, specific designed for AC/DC transformer with high cost performance ratio.

It provides continuous output power 12W and peak output power 18W at the input voltage range 85V~265V.

Features

  • Built-in 700V high voltage switching transistor, to minimize external components Latched PWM and pulse-by-pulse current limit inspection Reduced frequency at low output power, standby power consumption below 0.3W Built-in slope and feedback compensation function Independent the upper limit current inspection controller, real time to handle overload and over current function Turn off the periodic bias output of the emitter, to improve the sustaining voltage Built-in current limit resistor with te.

📥 Download Datasheet

Datasheet Details

Part number AX6203
Manufacturer AXElite
File Size 291.99 KB
Description Power Supply Controller
Datasheet download datasheet AX6203 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AX6120 Dot Matrix LCD Drivers ASLIC
AX6121 Dot Matrix LCD Drivers ASLIC
AX68 main board flow chart Trident
AX68-B Schematic Trident
AX68002 2-Port USB KVM Switch SoC ASIX

Other Datasheets by AXElite

Part Number Description
AX6224 Current Mode PWM Power Switch
AX6228 Current Mode PWM Power Switch
AX6302 Ultra Low Output Voltage Linear N-FET Controller
AX6601 300mA Low Dropout (LDO) Linear Regulator
AX6602 300mA LDO Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

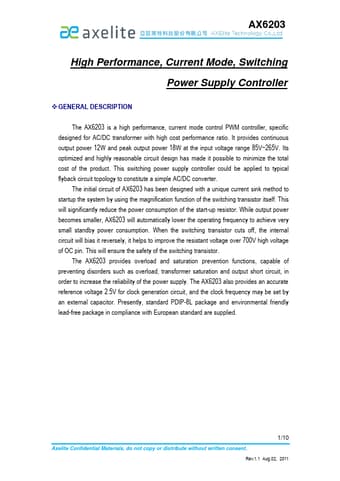

AX6203 High Performance, Current Mode, Switching Power Supply Controller  GENERAL DESCRIPTION The AX6203 is a high performance, current mode control PWM controller, specific designed for AC/DC transformer with high cost performance ratio. It provides continuous output power 12W and peak output power 18W at the input voltage range 85V~265V. Its optimized and highly reasonable circuit design has made it possible to minimize the total cost of the product. This switching power supply controller could be applied to typical flyback circuit topology to constitute a simple AC/DC converter. The initial circuit of AX6203 has been designed with a unique current sink method to startup the system by using the magnification function of the switching transistor itself.
