AW32902, AW32901 Over-Voltage Protection Load Switch

Description

AW32901/AW32902/AW32905/ AW32909/AW32910/AW32912 Apr.2018 V1.0 Over-Voltage Protection Load Switch with Surge Protection .
The AW329xx family OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 120V.

📥 Download Datasheet

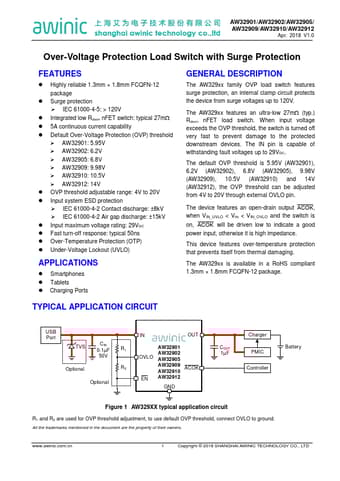

AW32902 Datasheet Preview — This datasheet PDF includes multiple part numbers: AW32902, AW32901. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AW32902, AW32901
Manufacturer: AWINC
File Size: 867.41 KB
Datasheet: AW32901-AWINC.pdf
Description: Over-Voltage Protection Load Switch
Note: This datasheet PDF includes multiple part numbers: AW32902, AW32901.
Please refer to the document for exact specifications by model.

Features

* Highly reliable 1.3mm × 1.8mm FCQFN-12 package
* Surge protection
* IEC 61000-4-5: > 120V
* Integrated low Rdson nFET switch: typical 27m
* 5A continuous current capability
* Default Over-Voltage Protection (OVP) threshold
* AW32901: 5.95V
* AW32902: 6.2V
* AW3

Applications

* Smartphones
* Tablets
