HX712 24-Bit Analog-to-Digital Converter

HX712 Description

HX712 24-Bit Analog-to-Digital Converter (ADC) with Load-cell Power Supply Switch and Battery Voltage Detection for Weigh Scales .
Based on Avia Semiconductor’s patented technology, HX712 is a precision 24-bit analogto-digital converter (ADC) with on chip load-cell power supply sw.

HX712 Features

* Selectable differential input or battery detection input
* On-chip low noise PGA with selectable gain of 128 and 256
* On-chip MOS power switch for turning off loadcell power supply in system power save mode
* On-chip oscillator requiring no external component with

HX712 Applications

* to interface directly with a bridge sensor. The differential inputs connect to the lownoise programmable gain amplifier (PGA) with a gain of 128 or 256, corresponding to a full-scale differential input voltage of ±20mV or ±10mV respectively, when a 5V reference voltage is connected between REFP and

📥 Download Datasheet

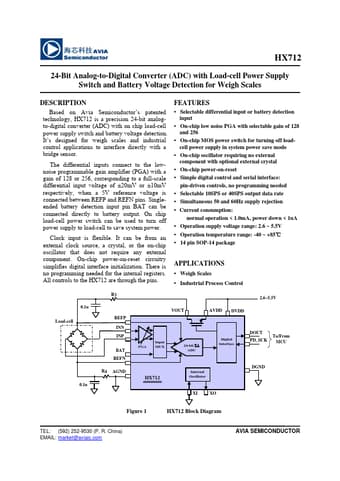

Preview of HX712 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HX712
Manufacturer
AVIA Semiconductor
File Size
292.23 KB
Datasheet
HX712-AVIASemiconductor.pdf
Description
24-Bit Analog-to-Digital Converter
