MGA-43003 - High Linearity (1.805 - 1.88)GHz Power Amplifier Module

Product Overview

AVAGO

Part number	MGA-43003
Manufacturer	AVAGO
File Size	526.73 KB
Description	High Linearity (1.805 - 1.88)GHz Power Amplifier Module
Datasheet	MGA-43003 Datasheet

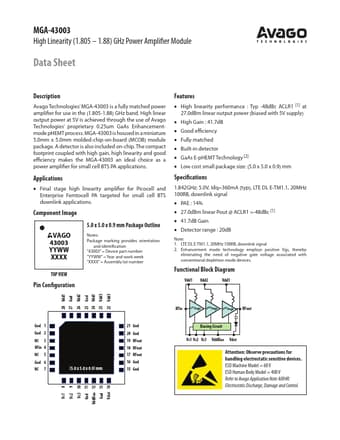

Additional preview pages of the MGA-43003 datasheet.

Avago Technologies’ MGA-43003 is a fully matched power amplifier for use in the (1.805-1.88) GHz band.

High linearity performance : Typ -48dBc ACLR1 [1] at 27.0dBm linear output power (biased with 5V supply).
High Gain : 41.7dB.
Good efficiency.
Fully matched.
Built-in detector.
GaAs E-pHEMT Technology [2].
Low cost small package size: (5.0 x 5.0 x 0.9) mm Specifications 1.842GHz; 5.0V, Idq=360mA (typ), LTE DL E-TM1.1, 20MHz 100RB, downlink signal.
PAE : 14%.
27.0dBm linear Pout @ ACLR1 =-48dBc [1].
