HSMS-2800 - Surface Mount RF Schottky Barrier Diodes

AVAGO

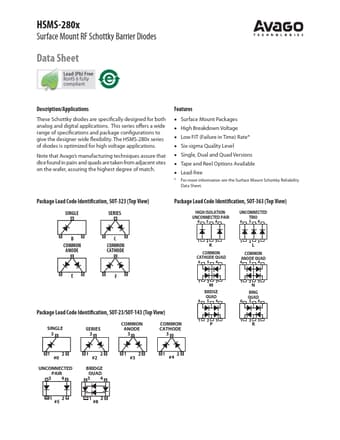

HSMS-2800 Datasheet Preview — Preview of HSMS-2800 PDF

Datasheet Details

Part number	HSMS-2800
Manufacturer	AVAGO
File Size	137.91 KB
Description	Surface Mount RF Schottky Barrier Diodes
Datasheet	HSMS-2800-AVAGO.pdf

HSMS-2800 Product details

Description

Applications These Schottky diodes are specifically designed for both analog and digital applications.This series offers a wide range of specifications and package configurations to give the designer wide flexibility.The HSMS-280x series of diodes is optimized for high voltage applications.Note that Avago’s manufacturing techniques assure that dice found in pairs and quads are taken from adjacent sites on the wafer, assuring the highest degree of match.

Features

x Surface Mount Packages x High Breakdown Voltage x Low FIT (Failure in Time) Rate.
x Six-sigma Quality Level x Single, Dual and Quad Versions x Tape and Reel Options Available x Lead-free.
For more information see the Surface Mount Schottky Reliability Data Sheet. Package Lead Code Identification, SOT-323 (Top View) SINGLE SERIES Package Lead Code Identification, SOT-363 (Top View) HIGH.
