HCNR201 - High-Linearity Analog Optocouplers

Download the HCNR201 datasheet PDF. This datasheet also covers the HCNR200 variant, as both devices belong to the same high-linearity analog optocouplers family and are provided as variant models within a single manufacturer datasheet.

General Description

The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illumi‑ nates two closely matched photodiodes.

The input pho‑ todiode can be used to monitor, and therefore stabilize, the light output of the LED.

Key Features

  • Low nonlinearity: 0.01%.
  • KH3C(NIPDR22/I0P0D1:)±tr1a5n%sfer gain HCNR201: ±5%.
  • Low gain temperature coefficient: ‑65 ppm/°C.
  • Wide bandwidth.
  • DC to >1 MHz.
  • Worldwide safety approval.
  •   UL 1577 recognized (5 kV rms/1 min rating).
  •   CSA approved.
  •   IEC/EN/DIN EN 60747-5-2 approved VIORM = 1414 V peak (option #050).
  • Surface mount option available (Option #300).
  • 8-Pin DIP package - 0.400” spacin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HCNR200-AVAGO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HCNR201
Manufacturer AVAGO
File Size 300.10 KB
Description High-Linearity Analog Optocouplers
Datasheet download datasheet HCNR201 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCNR201 High-Linearity Analog Optocouplers Broadcom
HCNR200 High-Linearity Analog Optocouplers Broadcom
HCN2C60 Silicon Controlled Rectifier Huashan
HCN3904 GENERAL PURPOSE TRANSISTOR HOTTECH
HCNW135 High-Speed Optocouplers Broadcom

Other Datasheets by AVAGO

Part Number Description
HCNR200 High-Linearity Analog Optocouplers
HCNW135 High Speed Optocouplers
HCNW136 High Speed Optocouplers
HCNW137 High Speed TTL Compatible Optocouplers
HCNW138 High Gain Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

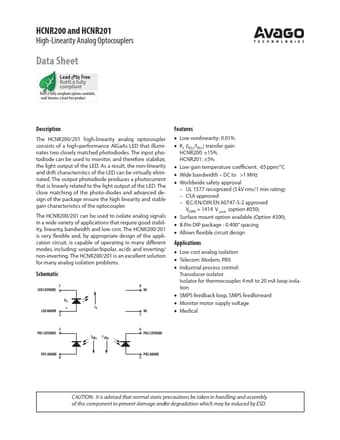

HCNR200 and HCNR201 High-Linearity Analog Optocouplers Data Sheet Lead (Pb) Free RcoomHSpl6iafnutlly RoHS 6 fully compliant options available; -xxxE denotes a lead-free product Description The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illumi‑ nates two closely matched photodiodes. The input pho‑ todiode can be used to monitor, and therefore stabilize, the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually elimi‑ nated. The output photodiode produces a photocur­rent that is linearly related to the light output of the LED. The close matching of the photo-diodes and advanced de‑ sign of the package ensure the high linearity and stable gain characteristics of the opto­coupler.
