ATF-55143 Low Noise Enhancement Mode Pseudomorphic HEMT

ATF-55143 Description

ATF-55143 Low Noise Enhancement Mode Pseudomorphic HEMT in a Surface Mount Plastic Package Data Sheet .
Avago Technologies’ ATF-55143 is a high dynamic range, very low noise, single supply E-PHEMT housed in a 4-lead SC-70 (SOT-343) surface mount plastic.

ATF-55143 Features

* High linearity performance
* Single Supply Enhancement Mode Technology[1]
* Very low noise figure
* Excellent uniformity in product specifications
* 400 micron gate width
* Low cost surface mount small plastic package SOT- 343 (4 lead SC-70)
* Tape-and-Reel packaging op

ATF-55143 Applications

* Low noise amplifier for cellular/PCS handsets
* LNA for WLAN, WLL/RLL and MMDS applications
* General purpose discrete E-PHEMT for other ultra low noise applications Note: 1. Enhancement mode technology requires positive Vgs, thereby eliminating the need for the negative gate voltage a

📥 Download Datasheet

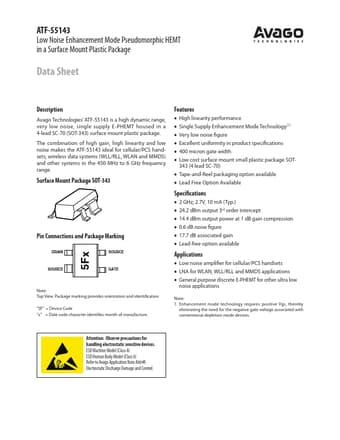

Preview of ATF-55143 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATF-55143
Manufacturer
AVAGO
File Size
161.56 KB
Datasheet
ATF-55143-AVAGO.pdf
Description
Low Noise Enhancement Mode Pseudomorphic HEMT
