AMMC-3040 - Double-Balanced Mixer

Description

The AMMC-3040 is a broadband Double-Balanced Mixer (DBM) with an integrated high-gain LO amplifier.

This MMIC can be used as either an up converter or down converter in microwave or millimeter wave applications.

📥 Download Datasheet

Datasheet Details

Part number AMMC-3040
Manufacturer AVAGO
File Size 688.62 KB
Description Double-Balanced Mixer
Datasheet download datasheet AMMC-3040 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AMMC-3040 18-36 GHz Double-Balanced Mixer Hewlett-Packard
AMMC-5618 6 - 20 GHz Amplifier Hewlett-Packard
AMMC-5620 Agilent AMMC-5620 6 - 20 GHz High Gain Amplifier Hewlett-Packard
AMMC-6120 8-20 GHz Output x2 Active Frequency Multiplier Agilent
AMMC-6140 20 - 40 GHz Output x2 Active Frequency Multiplier Agilent

Other Datasheets by AVAGO

Part Number Description
AMMC-3041 Double-Balanced Mixer
AMMC-2008 DC - 50 GHz SPDT Switch
AMMC-5023 Low Noise Amplifier
AMMC-5024 Traveling Wave Amplifier
AMMC-5025 TWA

Full PDF Text Transcription

Click to expand full text

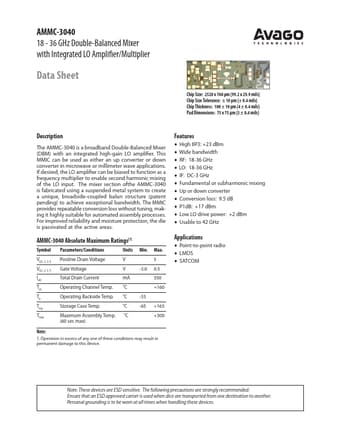

AMMC-3040 18 - 36 GHz Double-Balanced Mixer with Integrated LO Amplifier/Multiplier Data Sheet Chip Size: 2520 x 760 µm (99.2 x 29.9 mils) Chip Size Tolerance: ± 10 µm (± 0.4 mils) Chip Thickness: 100 ± 10 µm (4 ± 0.4 mils) Pad Dimensions: 75 x 75 µm (3 ± 0.4 mils) Description The AMMC-3040 is a broadband Double-Balanced Mixer (DBM) with an integrated high-gain LO amplifier. This MMIC can be used as either an up converter or down converter in microwave or millimeter wave applications. If desired, the LO amplifier can be biased to function as a frequency multiplier to enable second harmonic mixing of the LO input.
