ACPM-7331 - 4x4 Power Amplifier

Name: ACPM-7331
SKU: ACPM-7331-847255

AVAGO

📥 Download Datasheet

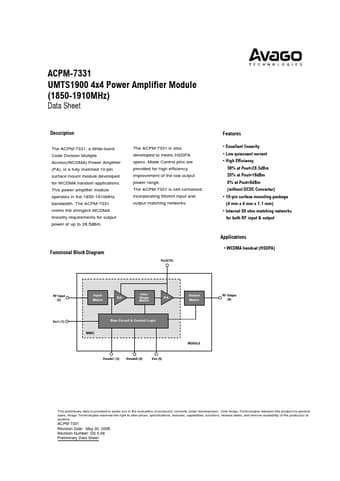

ACPM-7331 Datasheet Preview — Preview of ACPM-7331 PDF

Datasheet Details

Part number	ACPM-7331
Manufacturer	AVAGO
File Size	324.95 KB
Description	4x4 Power Amplifier
Datasheet	ACPM-7331-AVAGO.pdf

ACPM-7331 Product details

Description

The ACPM-7331, a Wide-band Code Division Multiple Access(WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module developed for WCDMA handset applications.

Features

Excellent linearity.
Low quiescent current.
High Efficiency 36% at Pout=28.5dBm 20% at Pout=16dBm 8% at Pout=8dBm (without DCDC Converter).
10-pin surface mounting package (4 mm x 4 mm x 1.1 mm).
Internal 50 ohm matching networks for both RF input & output.
