ACPL-M61L - Ultra-Low-Power 10 MBd Digital CMOS Optocouplers

Download the ACPL-M61L datasheet PDF (ACPL-064L included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra-low-power 10 mbd digital cmos optocouplers.

Description

The Avago ultra-low-power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector.

The optocoupler consumes extremely low power, at maximum 1.3 mA IDD current per channel across temperature.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACPL-064L-AVAGO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACPL-M61L
Manufacturer AVAGO
File Size 276.22 KB
Description Ultra-Low-Power 10 MBd Digital CMOS Optocouplers
Datasheet download datasheet ACPL-M61L Datasheet

📁 Similar Datasheet

  • ACPL-M61L - Low-Power 10-MBd Digital CMOS Optocouplers (Broadcom)
  • ACPL-M61M - 2.5V/3.3V Low-Power 10 MBd Digital Optocoupler (Broadcom)
  • ACPL-M43T - Automotive Wide Operating Temperature 1MBd Digital Optocoupler (AVAGO TECHNOLOGIES)
  • ACPL-M49T - 20-kBd digital optocoupler (Broadcom)
  • ACPL-M50L - Digital Optocoupler (Broadcom)
  • ACPL-054L - Digital Optocoupler (Broadcom)
  • ACPL-064L - Low-Power 10-MBd Digital CMOS Optocouplers (Broadcom)
  • ACPL-071L - Single-Channel and Dual-Channel High-Speed 15-MBd CMOS Optocoupler (Broadcom)
  • ACPL-074L - Single-Channel and Dual-Channel High-Speed 15-MBd CMOS Optocoupler (Broadcom)
  • ACPL-077L - Low-Power 3.3V/5V High-Speed CMOS Optocoupler (Broadcom)
Other Datasheets by AVAGO
  • ACPL-M61T - Automotive Wide Operating Temperature AEC-Q100 Compliant 10MBd Digital Optocoupler
  • ACPL-M61U-000E - Wide Operating Temperature 10MBd Digital Optocoupler
  • ACPL-M60L - Logic Gate Optocouplers
  • ACPL-M62L - Ultra Low Power 10 MBd Digital Optocoupler
  • ACPL-M21L - 5 MBd Digital CMOS Optocoupler
  • ACPL-M43U-000E - Wide Operating Temperature 1MBd Digital Optocoupler
  • ACPL-M46T - Automotive Intelligent Power Module
  • ACPL-M46U-000E - Wide Operating Temperature Intelligent Power Module Optocoupler

Full PDF Text Transcription

Click to expand full text

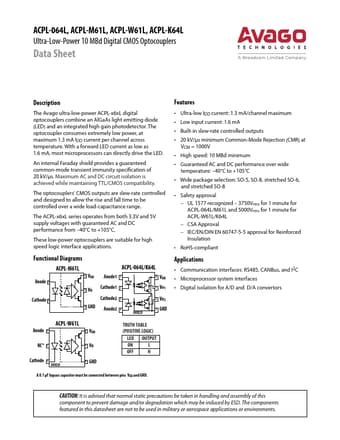

ACPL-064L, ACPL-M61L, ACPL-W61L, ACPL-K64L Ultra-Low-Power 10 MBd Digital CMOS Optocouplers Data Sheet Description The Avago ultra-low-power ACPL-x6xL digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes extremely low power, at maximum 1.3 mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED. An internal Faraday shield provides a guaranteed common-mode transient immunity specification of 20 kV/μs. Maximum AC and DC circuit isolation is achieved while maintaining TTL/CMOS compatibility.
