ACPF-7041 - TD-LTE Band 41 Bandpass Filter

AVAGO

📥 Download Datasheet

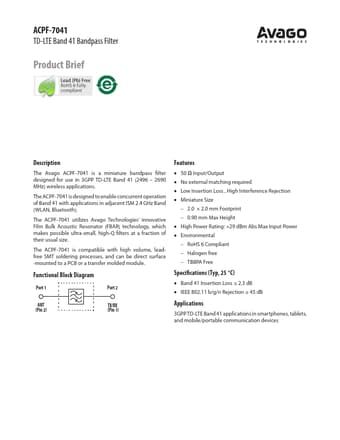

ACPF-7041 Datasheet Preview — Preview of ACPF-7041 PDF

datasheet Preview Page 2

Datasheet Details

Part number	ACPF-7041
Manufacturer	AVAGO
File Size	96.06 KB
Description	TD-LTE Band 41 Bandpass Filter
Datasheet	ACPF-7041-AVAGO.pdf

ACPF-7041 Product details

Description

The Avago ACPF-7041 is a miniature bandpass filter designed for use in 3GPP TD-LTE Band 41 (2496 2690 MHz) wireless applications.

Features

50 Ω Input/Output.
No external matching required.
Low Insertion Loss , High Interference Rejection.
Miniature Size.
2.0 × 2.0 mm Footprint.
0.90 mm Max Height.
High Power Rating: +29 dBm Abs Max Input Power.
Environmental.
RoHS 6 Compliant.
Halogen free.
TBBPA Free Specifications (Typ, 25 °C).
Band 41 Insertion Loss ≤ 2.3 dB.
IEEE 802.11 b/g/n Rejection ≥ 45 dB Applica.
