5082-3001 - PIN Diodes

Product Overview

AVAGO

Datasheet Details

Part number	5082-3001
Manufacturer	AVAGO
File Size	123.93 KB
Description	PIN Diodes
Datasheet	5082-3001 Datasheet

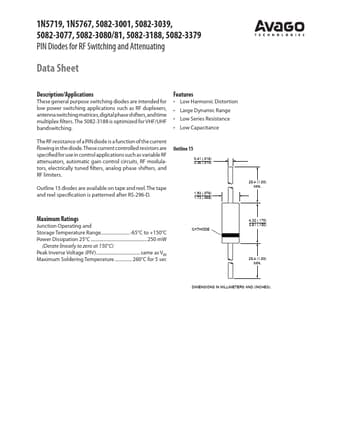

Additional preview pages of the 5082-3001 datasheet.

Product details

Description

Applications These general purpose switching diodes are intended for low power switching applications such as RF duplexers, antenna switching matrices, digital phase shifters, and time multiplex filters.The 5082-3188 is optimized for VHF/UHF bandswitching.

Features

Low Harmonic Distortion.
Large Dynamic Range.
Low Series Resistance.
Low Capacitance The RF resistance of a PIN diode is a function of the current flowing in the diode. These current controlled resistors are specified for use in control applications such as variable RF attenuators, automatic gain control circuits, RF modulators, electrically tuned filters, analog phase shifters, and RF limiters. Outline 15 0.41 (.016) 0.36 (.014) Outline 15 diodes are.
