SUR542EF - Epitaxial Planar Type NPN Silicon Transistor

Description

Digital transistor

Features

  • Two SRC1207 chips in SOT-563F package.

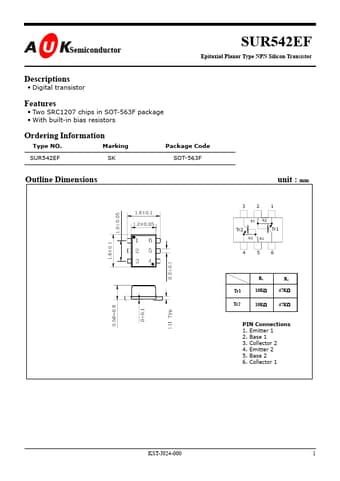

  • With built-in bias resistors Ordering Information Type NO. SUR542EF Marking SK Package Code SOT-563F Outline Dimensions 3 R1 unit : mm 2 R2 1 Tr2 R2 R1 Tr1 4 5 6 R1 Tr1 Tr2 10KΩ 10KΩ R2 47KΩ 47KΩ PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-J024-000 1 SUR542EF Absolute maximum ratings (Tr1, Tr2) Characteristic Out Voltage Input Voltage Out Current Power Dissipation Junction.
