STK830FC - Advanced Power MOSFET

Features

  • Avalanche rugged technology.

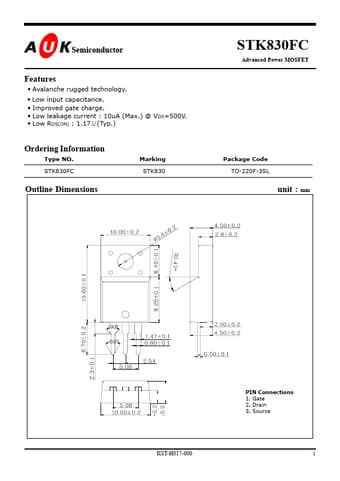

  • Low input capacitance. Improved gate charge. Low leakage current : 10uA (Max. ) @ VDS=500V. Low RDS(ON) : 1.17Ω(Typ. ) Ordering Information Type NO. STK830FC Marking STK830 Package Code TO-220F-3SL Outline Dimensions unit : mm PIN Connections 1. Gate 2. Drain 3. Source KST-H017-000 1 STK830FC Absolute maximum ratings Characteristic Drain-Source voltage Gate-Source voltage Continuous Drain current (Tc=25℃) Contin.

📥 Download Datasheet

Datasheet Details

Part number STK830FC
Manufacturer AUK
File Size 457.66 KB
Description Advanced Power MOSFET
Datasheet download datasheet STK830FC Datasheet
