SRA2219EF - PNP Silicon Transistor

Name: SRA2219EF
SKU: SRA2219EF-462012

AUK

The SRA2219EF by AUK is a PNP Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SRA2219EF
Manufacturer	AUK
File Size	52.27 KB
Description	PNP Silicon Transistor
Datasheet	SRA2219EF_AUKcorp.pdf

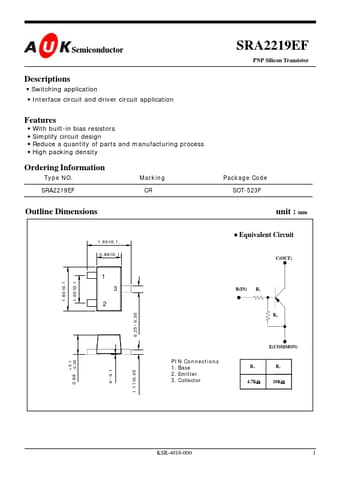

Additional preview pages of the SRA2219EF datasheet.

Switching application Interface circuit and driver circuit application

With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process High packing density Ordering Information Type NO. SRA2219EF Marking CR Package Code SOT-523F Outline Dimensions unit : mm.
Equivalent Circuit 1.60±0.1. 0.88±0.1. C(OUT) 1 1.60±0.1 1.00±0.1 3 2 0.25~0.30 B(IN) R1 R2 E(COMMON) +0.1 0.68 -0.05 0~0.1 1.11±0.05 PIN Connections 1. Base 2. Emitter 3. Collector R1 4.7KΩ R2 10KΩ KSR-4.
