SF1A600H - Ultra Fast Recovery Diode

Name: SF1A600H
SKU: SF1A600H-646879

AUK

The SF1A600H by AUK is a Ultra Fast Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	SF1A600H
Manufacturer	AUK
File Size	256.14 KB
Description	Ultra Fast Recovery Diode
Datasheet	SF1A600H_AUK.pdf

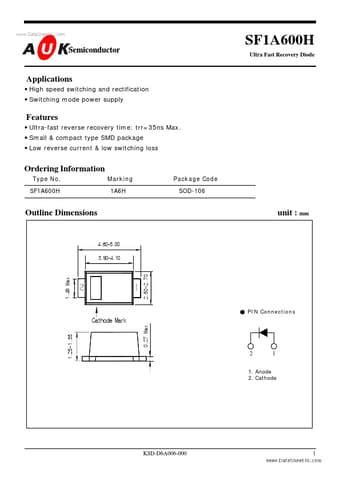

Additional preview pages of the SF1A600H datasheet.

Ultra-fast reverse recovery time: trr=35ns Max.
Small & compact type SMD package.
Low reverse current & low switching loss Ordering Information Type No. SF1A600H Marking 1A6H Package Code SOD-106 Outline Dimensions unit : mm 4.60~5.00 3.90~4.10 1.49 Max. 2.50~2.70.
PIN Connections 1.25~1.35 0.27 Max. Cathode Mark 2 1 1. Anode 2. Cathode KSD-D6A006-000 1 www. DataSheet4U. com SF1A600H [Ta=25°C] Absolute Maximum Ratings Characteristic Repetitive peak.
