SDB1040 Schottky Barrier Diode

SDB1040 Description

Semiconductor SDB1040 Schottky Barrier Diode .

SDB1040 Features

* Low power rectified
* Silicon epitaxial type
* High reliability
* Low IR (IR=10uA Typ) Ordering Information Type No. SDB1040 Marking 1A4 Package Code SOD-123 Outline Dimensions unit : mm 3.4~3.6 2.6~2.8 1.5~1.7 2 1 0.87~0.93 2 1 0.72~0.78 0.15 0.70 PIN

📥 Download Datasheet

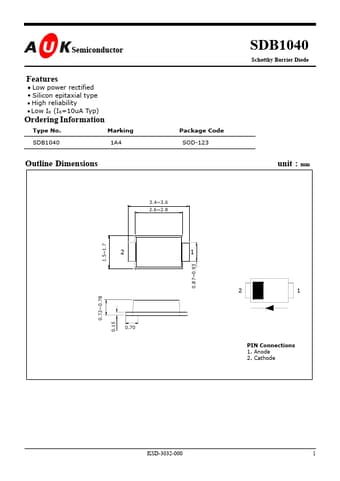

Preview of SDB1040 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDB1040
Manufacturer
AUK
File Size
243.50 KB
Datasheet
SDB1040_AUK.pdf
Description
Schottky Barrier Diode
