S78L10L - Positive-Voltage Regulators

Download the S78L10L datasheet PDF. This datasheet also covers the S78L05L variant, as both devices belong to the same positive-voltage regulators family and are provided as variant models within a single manufacturer datasheet.

Description

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

These applications include on-card regulation for elimination of Noise and distribution problems associated with single-point regulation.

Features

  • of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current. Features.
  • 3-Terminal Regulators.
  • Output Current Up to 100mA.
  • No External Components.
  • Internal Thermal Overload Protection.
  • Internal Short-Circuit Limiting Ordering Information Type NO. S78LxxL Marking S78LxxL Packag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S78L05L-AUK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S78L10L
Manufacturer AUK
File Size 250.82 KB
Description Positive-Voltage Regulators
Datasheet download datasheet S78L10L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S78L10 Positive-Voltage Regulators AUK corp
S78L12 Positive-Voltage Regulators AUK corp
S78L15 Positive-Voltage Regulators AUK corp
S78L18 Positive-Voltage Regulators AUK corp
S78L05 Positive-Voltage Regulators AUK corp

Other Datasheets by AUK

Part Number Description
S78L10F Positive-Voltage Regulators
S78L12F Positive-Voltage Regulators
S78L12L Positive-Voltage Regulators
S78L15F Positive-Voltage Regulators
S78L15L Positive-Voltage Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

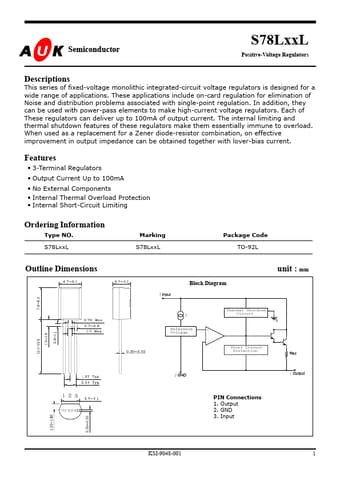

Semiconductor S78LxxL Positive-Voltage Regulators Descriptions This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of Noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. Each of These regulators can deliver up to 100mA of output current. The internal limiting and thermal shutdown features of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current.
