SBT2222AUF NPN Silicon Transistor

SBT2222AUF Description

v Semiconductor SBT2222AUF NPN Silicon Transistor .
General purpose application. Switching application Features. Low Leakage current. Low collector saturation volt.

SBT2222AUF Features

* Low Leakage current
* Low collector saturation voltage enabling low voltage operation
* Complementary pair with SBT2907AUF Ordering Information Type NO. SBT2222AUF Marking IQ Package Code SOT-323F Outline Dimensions 2.0~2.2 0.30~0.40 1.2~1.4 unit : mm 1.30 BSC 1.9~2.1

📥 Download Datasheet

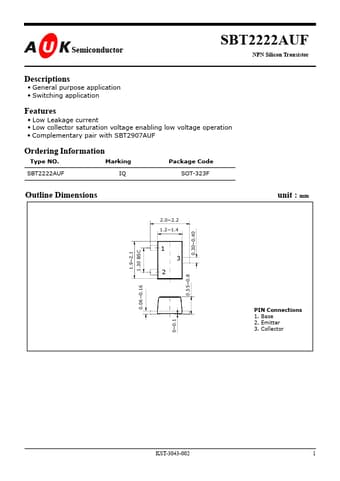

Preview of SBT2222AUF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBT2222AUF
Manufacturer
AUK corp
File Size
191.82 KB
Datasheet
SBT2222AUF_AUKcorp.pdf
Description
NPN Silicon Transistor
