SBC558 - PNP Silicon Transistor

Description

General purpose application Switching application

Features

  • High voltage : VCEO=-30V.

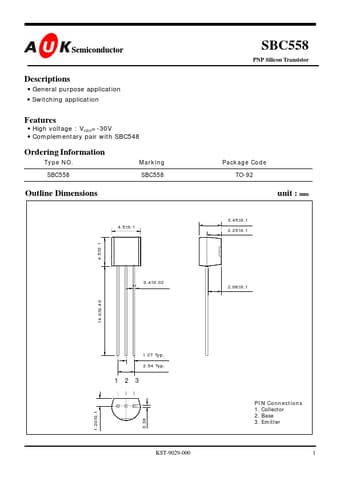

  • Complementary pair with SBC548 Ordering Information Type NO. SBC558 Marking SBC558 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Collector 2. Base 3. Emitter KST-9029-000 1 SBC558 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector.

📥 Download Datasheet

Datasheet Details

Part number SBC558
Manufacturer AUK corp
File Size 94.13 KB
Description PNP Silicon Transistor
Datasheet download datasheet SBC558 Datasheet
