SB1314E-V Chip LED Lamp

SB1314E-V Description

Semiconductor SB1314E-V Chip LED Lamp .

SB1314E-V Features

* 1.6mm(L)×0.8mm small size surface mount type
* Thin package of 0.4mm(H) thickness
* Transparent clear lens optic
* Low power consumption type chip LED
* Emitting Light Blue(470nm)

SB1314E-V Applications

* LCD backlighting
* Keypad backlighting
* Symbol backlighting
* Front panel indicator lamp Outline Dimensions unit : mm KLB-2006-001 1 SB1314E-V Absolute maximum ratings Characteristic Power Dissipation Forward Current
* Peak Forward Current Operating Temper

📥 Download Datasheet

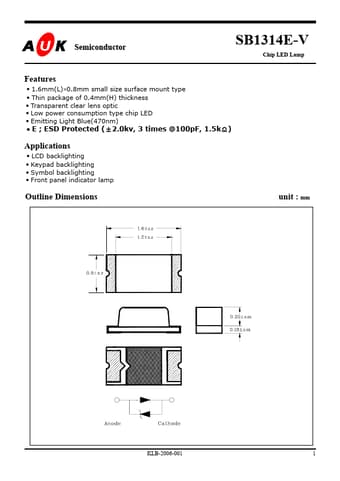

Preview of SB1314E-V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1314E-V
Manufacturer
AUK corp
File Size
229.18 KB
Datasheet
SB1314E-V_AUKcorp.pdf
Description
Chip LED Lamp
