S7136AM - Bipolar Linear Integrated Circuit

S7136AM Description

Semiconductor S7136AM Bipolar Linear Integrated Circuit .
As Control Circuit of Battery-Backed Memory. As Measure Against Erroneous Operations at Power On-Off. As Resetting Functio.

S7136AM Features

* Current Consumption is Low (ICCL=300 ㎂ Typ. ICCH=30 ㎂ Typ. )
* Resetting Output Minimum Guarantee Voltage is Low (0.8V Typ. )
* Hysteresis Voltage is Provided (50 ㎷ Typ. ) Ordering Information Type NO. S7136AM Marking S7136AM Package Code TO-92AM Outline Dimensions unit :

📥 Download Datasheet

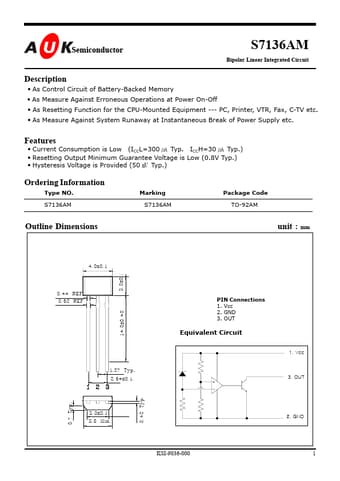

Preview of S7136AM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S7136AM
Manufacturer
AUK corp
File Size
211.72 KB
Datasheet
S7136AM_AUKcorp.pdf
Description
Bipolar Linear Integrated Circuit
