S1117-XXQ - Adjustable and Fixed LDO Voltage Regulator

Name: S1117-XXQ
SKU: S1117-XXQ-365557

AUK corp

📥 Download Datasheet

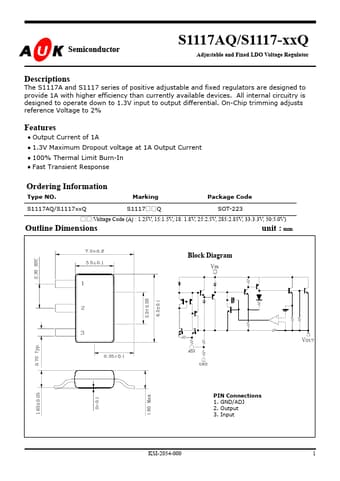

S1117-XXQ Datasheet Preview — Preview of S1117-XXQ PDF

Datasheet Details

Part number	S1117-XXQ
Manufacturer	AUK corp
File Size	404.15 KB
Description	Adjustable and Fixed LDO Voltage Regulator
Datasheet	S1117-XXQ_AUKcorp.pdf

S1117-XXQ Product details

Description

The S1117A and S1117 series of positive adjustable and fixed regulators are designed to provide 1A with higher efficiency than currently available devices.

Features

Output Current of 1A.
1.3V Maximum Dropout voltage at 1A Output Current.
100% Thermal Limit Burn-In.
Fast Transient Response Ordering Information Type NO. S1117AQ/S1117xxQ Marking S1117.
Q Package Code SOT-223.
:Voltage Code (Aj : 1.25V, 15:1.5V,:18: 1.8V, 25:2.5V, 285:2.85V, 33:3.3V, 50:5.0V) Outline Dimensions Block Diagram unit : mm PIN Connections 1. GND/ADJ 2. Output 3. Input KSI-2054-000 1 S1117AQ/S1117-xxQ Absol.
