24C512 - 2-wire Serial EEPROM

ATMELCorporation

📥 Download Datasheet

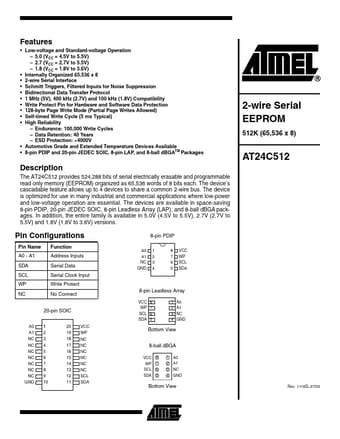

24C512 Datasheet Preview — Preview of 24C512 PDF

Datasheet Details

Part number: 24C512
Manufacturer: ATMELCorporation
File Size: 249.91 KB
Datasheet: 24C512_ATMELCorporation.pdf
Description: 2-wire Serial EEPROM

24C512 Product details

Description

The AT24C512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each.

Features

Low-voltage and Standard-voltage Operation.
5.0 (VCC = 4.5V to 5.5V).
2.7 (VCC = 2.7V to 5.5V).
1.8 (VCC = 1.8V to 3.6V) Internally Organized 65,536 x 8 2-wire Serial Interface Schmitt Triggers, Filtered Inputs for Noise Suppression Bidirectional Data Transfer Protocol 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility Write Protect Pin for Hardware and Software Data Protection 128-byte Page Write Mode (Partial Page Writes Allowed) Self-timed Write C.
