SAM7X512 ARM-based Flash MCU

SAM7X512 Description

ARM-based Flash MCU SAM7X512 / SAM7X256 / SAM7X128 SUMMARY DATASHEET .
The Atmel SAM7X512/256/128 is a highly-integrated Flash microcontroller based on the 32-bit ARM® RISC processor.

SAM7X512 Features

* 512/256/128 Kbytes of high-speed Flash and 128/64/32 Kbytes of SRAM, a large set of peripherals, including an 802.3 Ethernet MAC, and a CAN controller. A complete set of system functions minimizes the number of external components. The embedded Flash memory can be programmed in-system via the JTAG-I

SAM7X512 Applications

* requiring communication over Ethernet, wired CAN and ZigBee® wireless networks. This is a summary document. The complete document is available on the Atmel website at www. atmel. com. 6120IS
* ATARM

📥 Download Datasheet

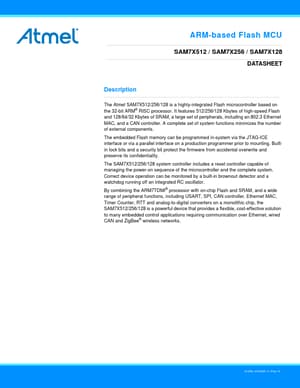

Preview of SAM7X512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAM7X512
Manufacturer
ATMEL
File Size
2.76 MB
Datasheet
SAM7X512-ATMEL.pdf
Description
ARM-based Flash MCU
