ATmega32 - 8-bit Microcontroller

ATMEL

📥 Download Datasheet

ATmega32 Datasheet Preview — Preview of ATmega32 PDF

Datasheet Details

Part number: ATmega32
Manufacturer: ATMEL
File Size: 4.05 MB
Datasheet: ATmega32-ATMEL.pdf
Description: 8-bit Microcontroller

ATmega32 Product details

Description

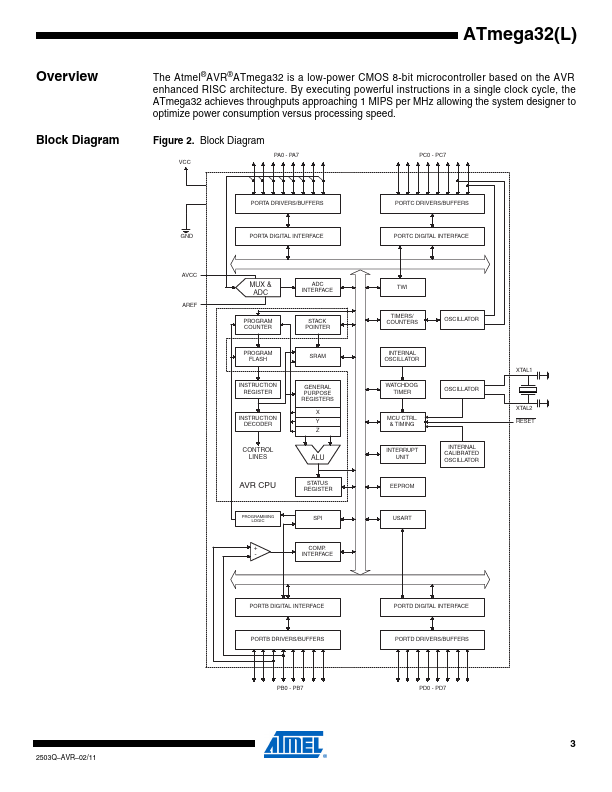

VCC GND Port A (PA7..PA0) The Atmel®AVR®AVR core combines a rich instruction set with 32 general purpose working registers.All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle.The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.The ATmega32 provides the following

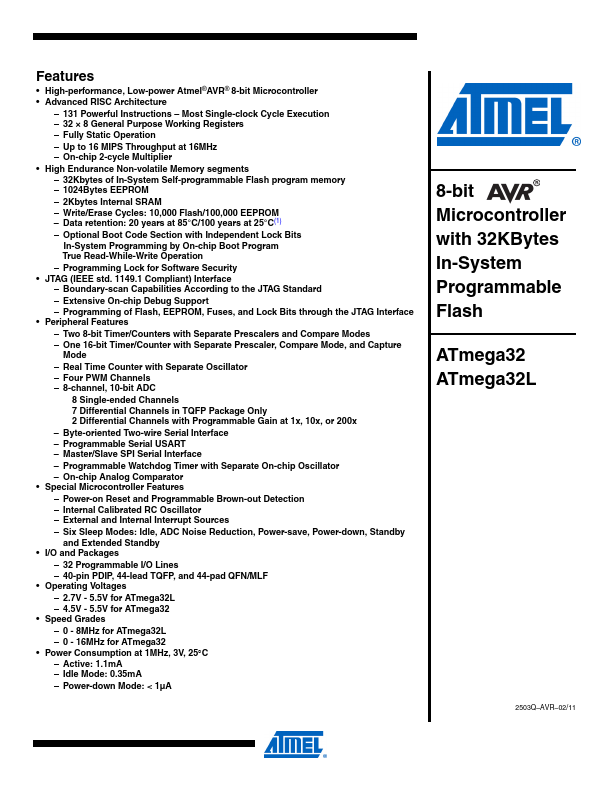

Features

High-performance, Low-power Atmel®AVR® 8-bit Microcontroller.
Advanced RISC Architecture.
131 Powerful Instructions.
Most Single-clock Cycle Execution.
32 × 8 General Purpose Working Registers.
Fully Static Operation.
Up to 16 MIPS Throughput at 16MHz.
On-chip 2-cycle Multiplier.
High Endurance Non-volatile Memory segments.
32Kbytes of In-System Self-programmable Flash program memory.
1024Bytes EE.
