ATA6826C, ATA6826 Triple Half-bridge DMOS Output Driver

ATA6826C Description

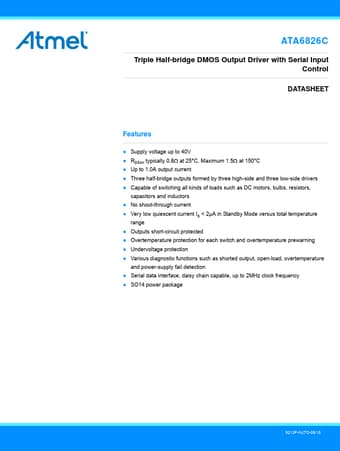

ATA6826C Triple Half-bridge DMOS Output Driver with Serial Input Control DATASHEET .
The Atmel® ATA6826C is a fully protected triple half-bridge designed in smart power SOI Technology, used to control up to three different loads by a m.

ATA6826C Features

* Supply voltage up to 40V
* RDSon typically 0.8 at 25°C, Maximum 1.5 at 150°C
* Up to 1.0A output current
* Three half-bridge outputs formed by three high-side and three low-side drivers
* Capable of switching all kinds of loads such as DC motors, bulbs, resistors, capacitors

ATA6826C Applications

* Each of the three high-side and three low-side drivers is capable of driving currents up to 1.0A. The drivers are internally connected to form three half-bridges and can be controlled separately from a standard serial data interface. Therefore, all kinds of loads such as bulbs, resistors, capacitor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATA6826C, ATA6826. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATA6826C, ATA6826
Manufacturer
ATMEL
File Size
496.43 KB
Datasheet
ATA6826_ATMELCorporation.pdf
Description
Triple Half-bridge DMOS Output Driver
Note
This datasheet PDF includes multiple part numbers: ATA6826C, ATA6826.
Please refer to the document for exact specifications by model.
