ATA6613C, ATA6612C 8K/16K Flash Microcontroller

ATA6613C Description

ATA6612C/ATA6613C 8K/16K Flash Microcontroller with LIN Transceiver, 5V Regulator and Watchdog DATASHEET General .
Atmel ATA6612C/ATA6613C is a system-in-package (SiP) product, which is particularly suited for complete LIN-bus slave-node applications.

ATA6613C Features

* Single-package fully-integrated Atmel® AVR® 8-bit microcontroller with LIN transceiver, 5V regulator (85mA current capability) and watchdog
* Very low current consumption in sleep mode

ATA6613C Applications

* I consists of two ICs in one package supporting highly integrated solutions for in-vehicle LIN networks. The first chip is the LIN-system-basis-chip (LIN-SBC) Atmel ATA6624, which has an integrated LIN transceiver, a 5V regulator and a window watchdog. The second chip is an automotive microcontroll

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATA6613C, ATA6612C. Please refer to the document for exact specifications by model.

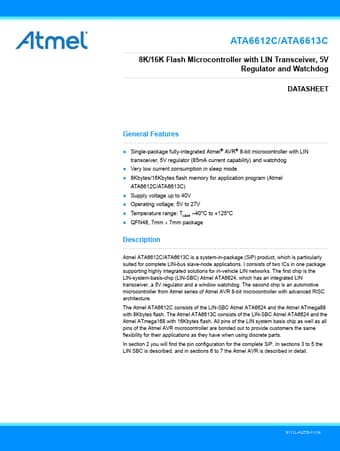

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATA6613C, ATA6612C
Manufacturer
ATMEL
File Size
3.95 MB
Datasheet
ATA6612C-ATMEL.pdf
Description
8K/16K Flash Microcontroller
Note
This datasheet PDF includes multiple part numbers: ATA6613C, ATA6612C.
Please refer to the document for exact specifications by model.
