AT49HF010 - 1-Megabit 5-volt Only CMOS Flash Memory

ATMEL

Datasheet Details

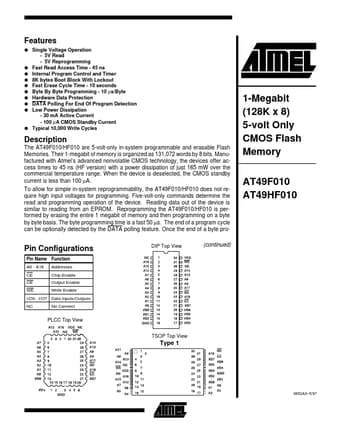

The AT49F010/HF010 are 5-volt-only in-system programmable and erasable Flash Memories.

Single Voltage Operation - 5V Read - 5V Reprogramming Fast Read Access Time - 45 ns.
Internal Program Control and Timer.
8K bytes Boot Block With Lockout.
Fast Erase Cycle Time - 10 seconds.
Byte By Byte Programming - 10 µs/Byte Hardware Data Protection.
DATA Polling For End Of Program Detection.
Low Power Dissipation - 30 mA Active Current - 100 µA CMOS Standby Current.
Typical 10,000 Write Cycles Descrip.
