29C010A - 1 Megabit 128K x 8 5-volt Only CMOS Flash Memory

Description

The AT29C010A is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM).

Its 1 megabit of memory is organized as 131,072 words by 8 bits.

Features

  • Fast Read Access Time - 70 ns 5-Volt-Only Reprogramming Sector Program Operation Single Cycle Reprogram (Erase and Program) 1024 Sectors (128 bytes/sector) Internal Address and Data Latches for 128-Bytes Two 8 KB Boot Blocks with Lockout Internal Program Control and Timer Hardware and Software Data Protection Fast Sector Program Cycle Time - 10 ms DATA Polling for E.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
29C010 High Speed CMOS 1M Programmable EROM Turbo IC
29C10ADM AM29C10ADM AMD
29CZ8URB Color Television SERVICE MANUAL Toshiba
29CZ8URS Color Television SERVICE MANUAL Toshiba

Other Datasheets by Atmel (Microchip)

Part Number Description
29C020 2-Megabit 256K x 8 5-volt Only CMOS Flash Memory
29C040 4-Megabit 512K x 8 5-volt Only 256-Byte Sector CMOS Flash Memory
29C256 256K 32K x 8 5-volt Only CMOS Flash Memory
29C512 512K 64K x 8 5-volt Only CMOS Flash Memory
29C516E 16 Bit Flow Through EDAC Error Detection And Correction unit

Full PDF Text Transcription

Click to expand full text

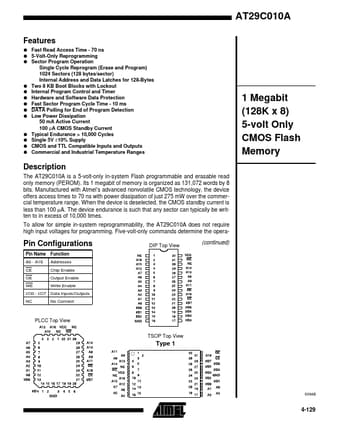

AT29C010A Features • • • • • • • • • • • • • Fast Read Access Time - 70 ns 5-Volt-Only Reprogramming Sector Program Operation Single Cycle Reprogram (Erase and Program) 1024 Sectors (128 bytes/sector) Internal Address and Data Latches for 128-Bytes Two 8 KB Boot Blocks with Lockout Internal Program Control and Timer Hardware and Software Data Protection Fast Sector Program Cycle Time - 10 ms DATA Polling for End of Program Detection Low Power Dissipation 50 mA Active Current 100 µA CMOS Standby Current Typical Endurance > 10,000 Cycles Single 5V ±10% Supply CMOS and TTL Compatible Inputs and Outputs Commercial and Industrial Temperature Ranges 1 Megabit (128K x 8) 5-volt Only CMOS Flash Memory Description The AT29C010A is a 5-volt-only in-system Flash programmable and erasable read onl
