T6819 - (T6819 / T6829) Dual Triple DMOS Output Driver

Download the T6819 datasheet PDF. This datasheet also covers the T6829 variant, as both devices belong to the same (t6819 / t6829) dual triple dmos output driver family and are provided as variant models within a single manufacturer datasheet.

Description

The T6819/T6829 are fully protected driver interfaces designed in 0.8 µm BCDMOS technology.

They are used to control up to six different loads by a microcontroller in automotive and industrial applications.

Features

  • Supply Voltage up to 40 V RDSon Typically 0.5 Ω at 25°C, Maximum 1 Ω at 150°C Up to 1.5 A Output Current Three High-side and Three Low-side Drivers Usable as Single Outputs or Half Bridges Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Resistors, Capacitors and Inductors PWM Capability for Each Output Controlled by External PWM Signal No Shoo.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (T6829_ATMELCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
T680N Phase Control Thyristor Infineon

Other Datasheets by Atmel (Microchip)

Part Number Description
T6816 Dual Hex Output Driver
T6817 Dual Triple DMOS Output Driver
T6818 (T6818 / T6828) Triple Halfbridge DMOS OUTPUT DRIVER
T6801 Single-channel Driver
T6828 (T6818 / T6828) Triple Halfbridge DMOS OUTPUT DRIVER

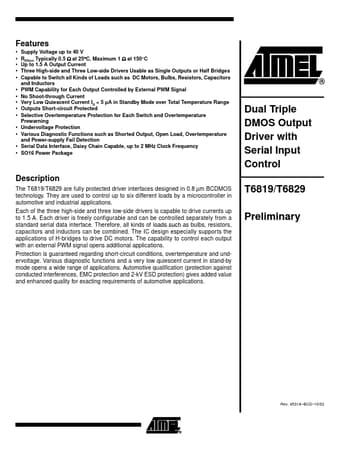

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Features • • • • • • • • • • • • • • Supply Voltage up to 40 V RDSon Typically 0.5 Ω at 25°C, Maximum 1 Ω at 150°C Up to 1.
