ATA6286, ATA6285 (ATA6285 / ATA6286) TPMS Control and Transmitter IC

ATA6286 Description

www.DataSheet4U.com .
ATA6285 and ATA6286 are highly integrated smart RF micro transmitter ICs for 315 MHz and 433 MHz, suited for ASK and FSK with typically 20 Kbits/s dat.

ATA6286 Features

* Programmable AVR® 8-bit Flash Microcontroller Transmitter IC Frequency: 315 MHz (ATA6285) and 433 MHz (ATA6286) Support ASK/FSK Modulation with Integrated FSK S

ATA6286 Applications

* with typically less then 10 passive components: one external crystal for the sensor gauge, several capacitors, a single LiMnO2 battery coin cell, a single-ended antenna for the data transmission and an LF ferrite coil for the wake-up channel. ATA6285 and ATA6286 support TPMS-specific low-current mod

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATA6286, ATA6285. Please refer to the document for exact specifications by model.

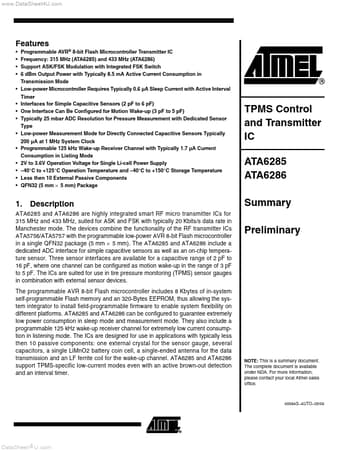

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATA6286, ATA6285
Manufacturer
ATMEL Corporation
File Size
412.82 KB
Datasheet
ATA6285_ATMELCorporation.pdf
Description
(ATA6285 / ATA6286) TPMS Control and Transmitter IC
Note
This datasheet PDF includes multiple part numbers: ATA6286, ATA6285.
Please refer to the document for exact specifications by model.
