ATA5570 Multifunctional 330-bit Read/Write RF Sensor Identification IC

ATA5570 Description

.
The ATA5570 is a contactless R/W IDentification IC (IDIC®) for applications in the 125 kHz frequency range.

ATA5570 Features

* Contactless Read/Write Data Transmission Sensor Input RS > 100 kΩ (Typical) => Data Stream Inverted Radio Frequency fRF from 100 kHz to 150 kHz e5550 Binary Compatible or ATA5570 Extended Mode Small Size, Configurable fo

ATA5570 Applications

* in the 125 kHz frequency range. A single coil, connected to the chip, serves as the IC's power supply and bi-directional communication interface. The antenna and chip together form a transponder or tag. www. DataSheet4U. com The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written

📥 Download Datasheet

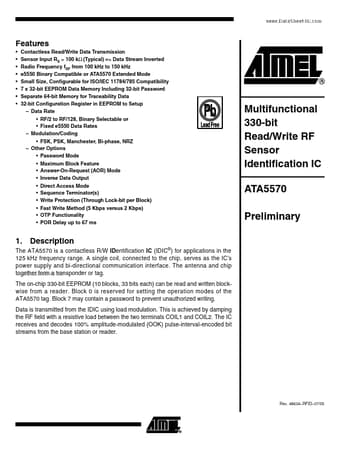

Preview of ATA5570 PDF
