ATA5277 - STAND-ALONE ANTENNA DRIVER

Description

The circuit is an integrated BCDMOS antenna driver IC dedicated as a transmitter for Passive Entry/Go (PEG) car applications and for other handsfree access control applications.

Features

  • Programmable Driver Current Regulation Antenna Driver Stage for 1 A Peak Current LF Baudrates between 1 kbaud to 8 kbaud Integrated Oscillator for Ceramic Resonators Two Inputs for Push-button Switches Bi-directional Single-wire Interface Diagnosis Function and Overtemperature Protection Quick Start Control (QSC) for Fast Oscillation Build-up and Decay Timing Operatio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ATA5021 Digital Window Watchdog Timer ATMEL
ATA5577C Read/Write LF RFID IDIC Microchip
ATA5577M1330C-PP Read/Write LF RFID IDIC Transponder Atmel
ATA5580 The AES 125kHz Transponder Atmel
ATA5723 (ATA5723 - ATA5728) UHF ASK/FSK Receiver ATMEL

Other Datasheets by Atmel (Microchip)

Part Number Description
ATA5275 TRANSMITTER IC
ATA5276 TRANSMITTER IC
ATA5278 STAND-ALONE ANTENNA DRIVER
ATA5282 ULTRA LOW POWER 125 KHZ 3D WAKE UP RECEIVER
ATA5283 Interface IC for 125 kHz Wake-up Function

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

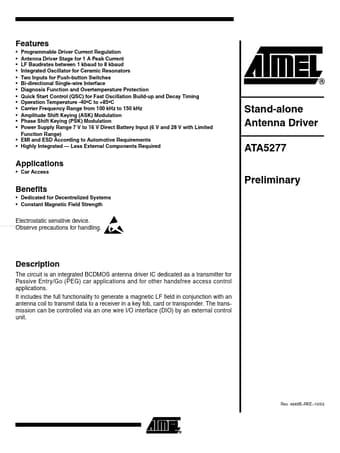

Features • • • • • • • • • • • • • Programmable Driver Current Regulation Antenna Driver Stage for 1 A Peak Current LF Baudrates between 1 kbaud to 8 kbaud Integrated Oscillator for Ceramic Resonators Two Inputs for Push-button Switches Bi-directional Single-wire Interface Diagnosis Function and Overtemperature Protection Quick Start Control (QSC) for Fast Oscillation Build-up and Decay Timing Operation Temperature -40°C to +85°C Carrier Frequency Range from 100 kHz to 150 kHz Amplitude Shift Keying (ASK) Modulation Phase Shift Keying (PSK) Modulation Power Supply Range 7 V to 16 V Direct Battery Input (6 V and 28 V with Limited Function Range) • EMI and ESD According to Automotive Requirements • Highly Integrated — Less External Components Required Stand-alone Antenna Driver ATA5277 Prel
