AT91SAM9261S AT91 ARM Thumb-based Microcontrollers

ATMEL Corporation

Description

www.DataSheet4U.com .
The AT91SAM9261S is a complete system-on-chip built around the ARM926EJ-S ARM Thumb processor with an extended DSP instruction set and Jazelle Java ac.

📥 Download Datasheet

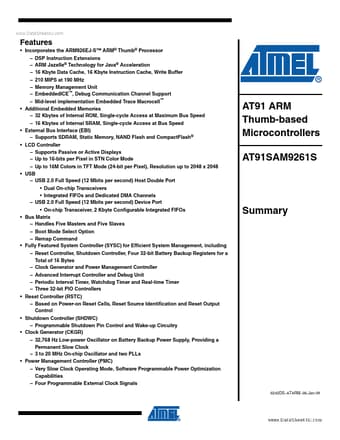

AT91SAM9261S Datasheet Preview — Preview of AT91SAM9261S PDF

Datasheet Specifications

Part number: AT91SAM9261S
Manufacturer: ATMEL Corporation
File Size: 742.08 KB
Datasheet: AT91SAM9261S_ATMELCorporation.pdf
Description: AT91 ARM Thumb-based Microcontrollers

Features

* Incorporates the ARM926EJ-S™ ARM® Thumb® Processor
* DSP Instruction Extensions
* ARM Jazelle® Technology for Java® Acceleration
* 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer
* 210 MIPS at 190 MHz
* Memory Management Unit

Applications

* with an LCD display. Its integrated LCD controller supports BW and up to 16M color, active and passive LCD displays. The 16 Kbyte integrated SRAM can be configured as a frame buffer minimizing the impact for LCD refresh on the overall processor performance. The External Bus Interface incorporates co
