AT91SAM7SE256 - (AT91SAM7SExxx) Flash microcontroller

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT91SAM7SE256
Manufacturer	ATMEL Corporation
File Size	975.11 KB
Description	(AT91SAM7SExxx) Flash microcontroller
Datasheet	AT91SAM7SE256 Datasheet

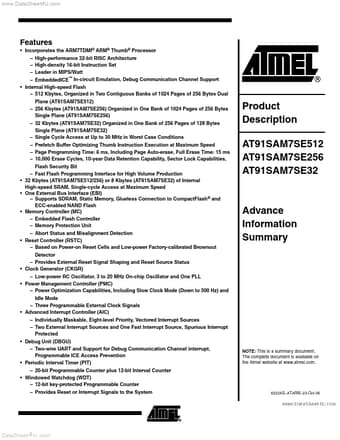

Additional preview pages of the AT91SAM7SE256 datasheet.

Product details

Description

AT91SAM7SE512 AT91SAM7SE256 AT91SAM7SE32 Advance Information Summary NOTE: This is a summary document. ATARM 23-Oct-06 DataSheet 4 U .com www.DataSheet4U.com Counter May Be Stopped While the Processor is in Debug State or in Idle Mode Real-time Timer (RTT) 32-

Features

Incorporates the ARM7TDMI® ARM® Thumb® Processor.
High-performance 32-bit RISC Architecture.
High-density 16-bit Instruction Set.
Leader in MIPS/Watt.
EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support Internal High-speed Flash.
512 Kbytes, Organized in Two Contiguous Banks of 1024 Pages of 256 Bytes Dual Plane (AT91SAM7SE512).
256 Kbytes (AT91SAM7SE256) Organized in One Bank of 1024 Pages of 256 Bytes Single Pla.
