AT89C51CC02 - Enhanced 8-bit Microcontroller

ATMEL Corporation

📥 Download Datasheet

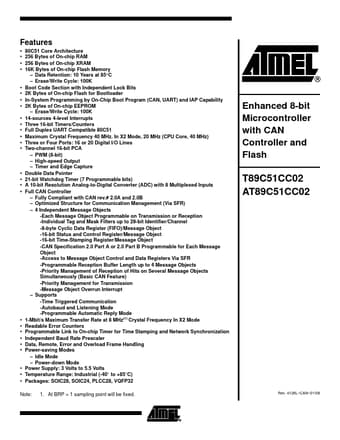

AT89C51CC02 Datasheet Preview — Preview of AT89C51CC02 PDF

Datasheet Details

Part number	AT89C51CC02
Manufacturer	ATMEL Corporation
File Size	1.04 MB
Description	Enhanced 8-bit Microcontroller
Datasheet	AT89C51CC02_ATMELCorporation.pdf

AT89C51CC02 Product details

Description

Block Diagram Part of the CANaryTM family of 8-bit microcontrollers dedicated to CAN network applications, the T89C51CC02 is a low-pin count 8-bit Flash microcontroller.In X2 Mode a maximum external clock rate of 20 MHz reaches a 300 ns cycle time.Besides the full CAN controller T89C51CC02 provides 16K Bytes of Flash memory including In-System Programming (ISP), 2K Bytes Boot Flash Memory, 2K Bytes EEPROM and 512 Bytes RAM.Special attention is payed to the reduction of the electro-magnetic e

Features

80C51 Core Architecture.
256 Bytes of On-chip RAM.
256 Bytes of On-chip XRAM.
16K Bytes of On-chip Flash Memory.
Data Retention: 10 Years at 85°C.
Erase/Write Cycle: 100K.
Boot Code Section with Independent Lock Bits.
2K Bytes of On-chip Flash for Bootloader.
In-System Programming by On-Chip Boot Program (CAN, UART) and IAP Capability.
2K Bytes of On-chip EEPROM.
Erase/Write Cycle: 100K.
