AT45DB321 32-Megabit 2.7-volt Only Serial DataFlash

AT45DB321 Description

.
The AT45DB321 is a 2.

AT45DB321 Features

* Single 2.7V - 3.6V Supply
* Serial-interface Architecture
* Page Program Operation
* Single Cycle Reprogram (Erase and Program)
* 8192 Pages (528 Bytes/Page) Main Memory
* Optional Page and Block Erase Operations
* Two 528-byte SRAM Data Buff

AT45DB321 Applications

* where high density, low pin count, low voltage, and low power are essential. Typical applications for the DataFlash are digital voice storage, image storage, and data storage. The device operates at clock frequencies up to 13 MHz with a typical active read current consumption of 4 mA. To allow for

📥 Download Datasheet

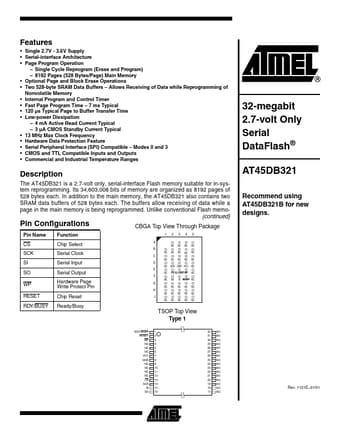

Preview of AT45DB321 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT45DB321
Manufacturer
ATMEL Corporation
File Size
151.56 KB
Datasheet
AT45DB321-ATMELCorporation.pdf
Description
32-Megabit 2.7-volt Only Serial DataFlash
