AT45DB021D - 2-megabit 2.7-volt DataFlash

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT45DB021D
Manufacturer	ATMEL Corporation
File Size	1.37 MB
Description	2-megabit 2.7-volt DataFlash
Datasheet	AT45DB021D Datasheet

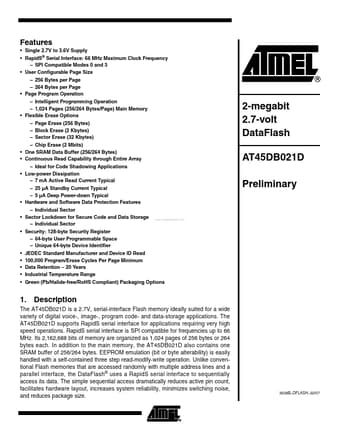

Additional preview pages of the AT45DB021D datasheet.

Product details

Description

The AT45DB021D is a 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Features

Single 2.7V to 3.6V Supply.
RapidS® Serial Interface: 66 MHz Maximum Clock Frequency.
SPI Compatible Modes 0 and 3.
User Configurable Page Size.
256 Bytes per Page.
264 Bytes per Page Page Program Operation.
Intelligent Programming Operation.
1,024 Pages (256/264 Bytes/Page) Main Memory Flexible Erase Options.
Page Erase (256 Bytes).
Block Erase (2 Kbytes).
Sector Erase (32 Kbytes).
Chip.
